- Power input: DC 12V, 25W
- Running current: 2000mA ±10%
- Rotation: 1300rpm ±10%
- Height: 108~140cm adjustable
- Size of blade: 440mm±3%
- Number of speeds: 3
- AC/DC Adapter: Input> AC 100~240V, 50/60Hz, Output> DC 12V, 2A max
- Recommended solar panel: 12~15V 20~50W
- Protection class: Class II
- Moisture protection: IPXO
AC/DC Fan
Collection
QSF-18YOGA acdc
Orbit Fan QOF-1602 dc
- Power voltage: DC 12~15V
- Power input: 20W±5%
- Rotation speed: 1150±50rpm(max.)
- Size of blade: 380mm±3%
- Number of speed: 3
- Recommended solar panel: 15V, 20~50W

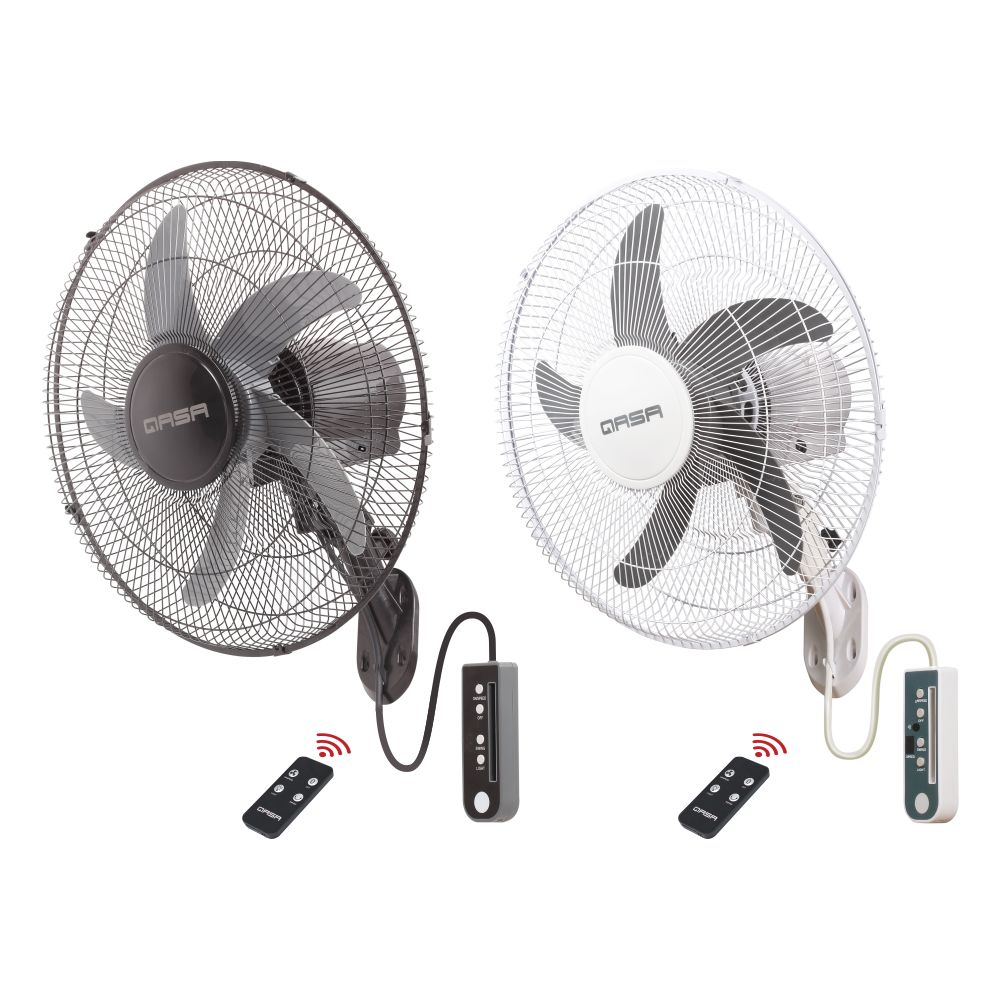

QWF-1601 acdc
- Power input: DC 12V, 17W
- Rotation:1300rpm ±10%
- Running current: 1400mA ±10%
- Size of blade: 380mm±3%
- Light:LED bright 15Lm
- Number of speeds: 5
- AC/DC Adapter: input> AC 100~240V, 50/60Hz , Output> DC 12.5V, 2.5A max
- Recommended solar panel:12~15V 20~50W
Ceiling Fan QCF-56C acdc2
- Power supply: AC230V 50Hz/12V DC POWER/15V SOLAR PANEL 50W
- Power input: 36±5W
- Rated current: 3A
- Rotation speed: 320±10rpm(Max.)
- Blade span: 1400mm±3%
- Recommended solar panel: 15~18V, 45W~50W
- The wiring for acdc2 model: https://youtu.be/FityuJM5Mg8?si=WH4dD4FFpTVFcT4f
AC/DC Mist Fan QSF-16R
- Power input: DC 24V, 60W
- Running current: 2500mA ±10%
- AC/DC adapter: AC IN 230V, DC OUT 24V, 3A max.
- Recommended solar panel: 24V, 80~100W
- Max rotation: 1050rpm ±10%
- Size of blade:350mm±3%
- Height: 125cm
- Number of speeds: 9
18”AC/DC Standing Fan QSF-18R DC
- Power input: DC 12V, 20W
- Running current: 1600mA
- AC/DC Adapter: Input> AC 100~240V, 50/60Hz, 25W Output> DC 12.5V, 2A max.
- Max rotation: 1150rpm± 10%
- Height: 120~140cm
- Size of blade: 440mm±3%
Ceiling Fan QCF-56C acdc1
- Power supply: AC230V 50Hz/12V DC POWER/15V SOLAR PANEL 50W
- Power input: 36±5W
- Rated current: 3A
- Rotation speed: 320±10rpm(Max.)
- Blade span: 1400mm±3%
- Recommended solar panel: 15~18V, 45W~50W
- The wiring for acde1 model: https://youtu.be/xOHYnNHZO5Y?si=_0fku2DfESJKz1E3
QCF-56 ebony (acdc1)
- Power supply: AC230V50Hz / DC 12V / solar panel 15~18V
- Power input: 25W±10% DC12V
- Rated current: DC2.0A
- Rotation speed: AC 245rpm±10% (Max.)
- Blade span: 1400mm±3%
- Recommended solar panel: 15~18V, 30W~50W
QCF-24 acdc
- Power supply: AC230V50Hz/DC 12V/ SOLAR PANEL 15~18V
- Power input: DC 12V 20W±10%,
- AC 230V 25W±10%
- Rated current: DC1.64A
- Rotation speed: AC 450rpm±10% (Max.)
- Blade span: 630mm±3%
- Recommended solar panel: 15~18V, 30W~50W
QWF-1801 acdc
- Power Input: DC 12V, 25W
- Running Current: 2000mA ±10%
- Rotation: 1250rpm ±10%
- Size of Blade:438mm±3%
- Light: LED Bright
- Number of Speeds: 5
- AC/DC Adapter: Input> AC 100~240V, 50/60Hz Output> DC 12V, 2A max
- Recommended Solar Panel: 12~15V 20~50W
18” DC Standing Fan QSF-18R Metal
- AC/DC adapter: Input> AC 100~240V, 50/60Hz, 25W
- Output> DC 12V, 2A max.
- Power input: DC 12V, 20W
- Running current: 1800mA
- Max rotation: 1200rpm±10％
- Height: 115~140cm adjustable
- Size of blade:438mm±3%
- Number of speeds: 8
